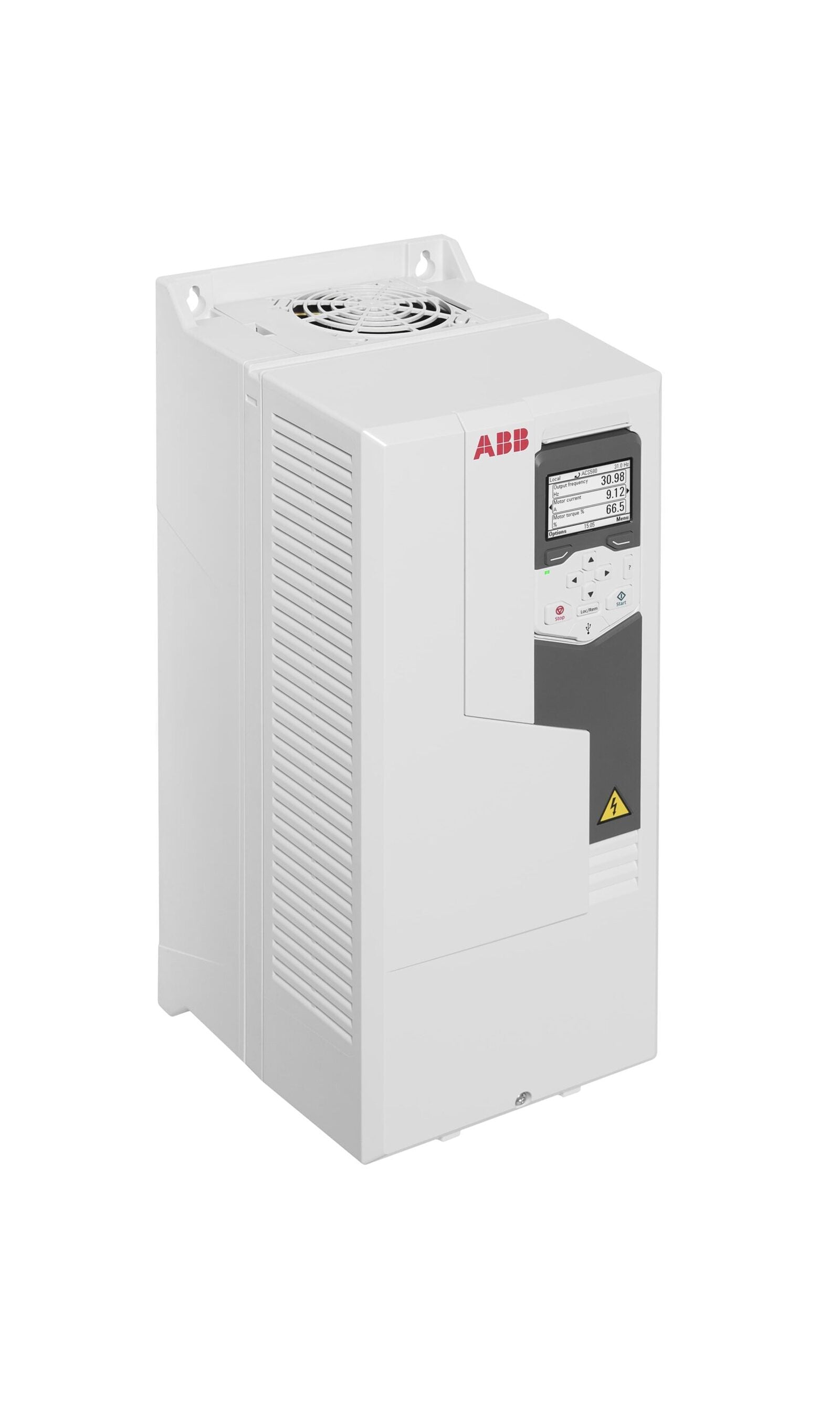

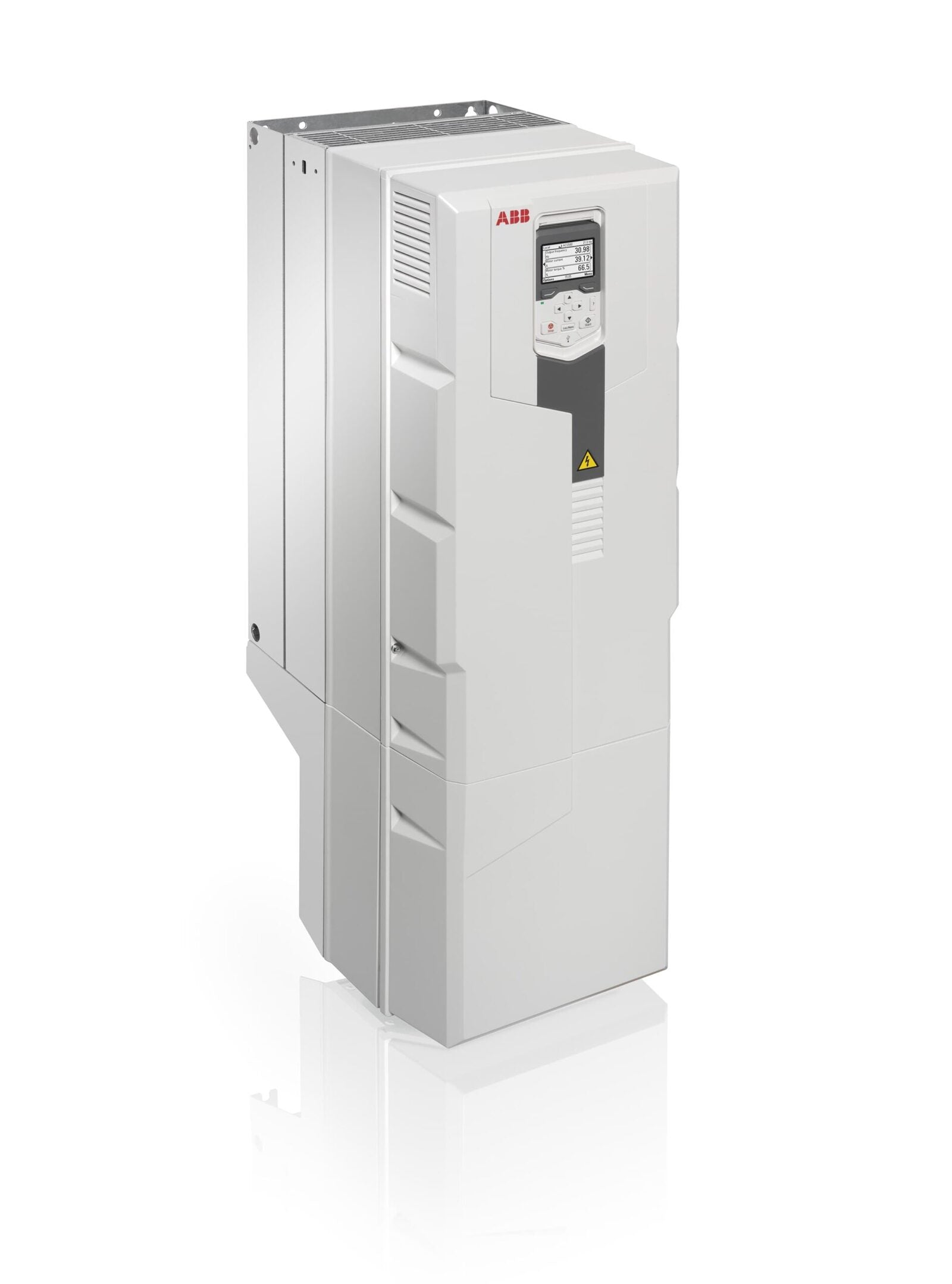

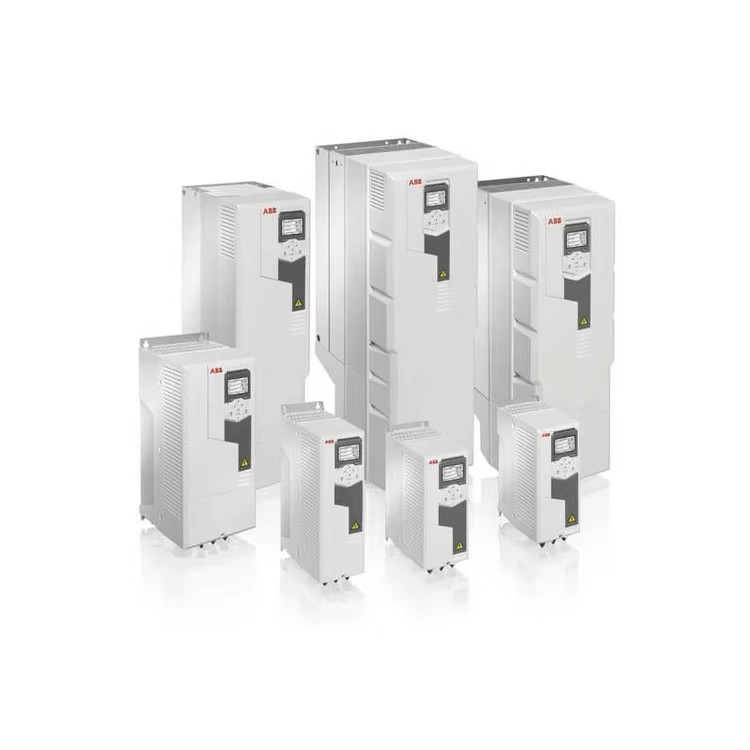

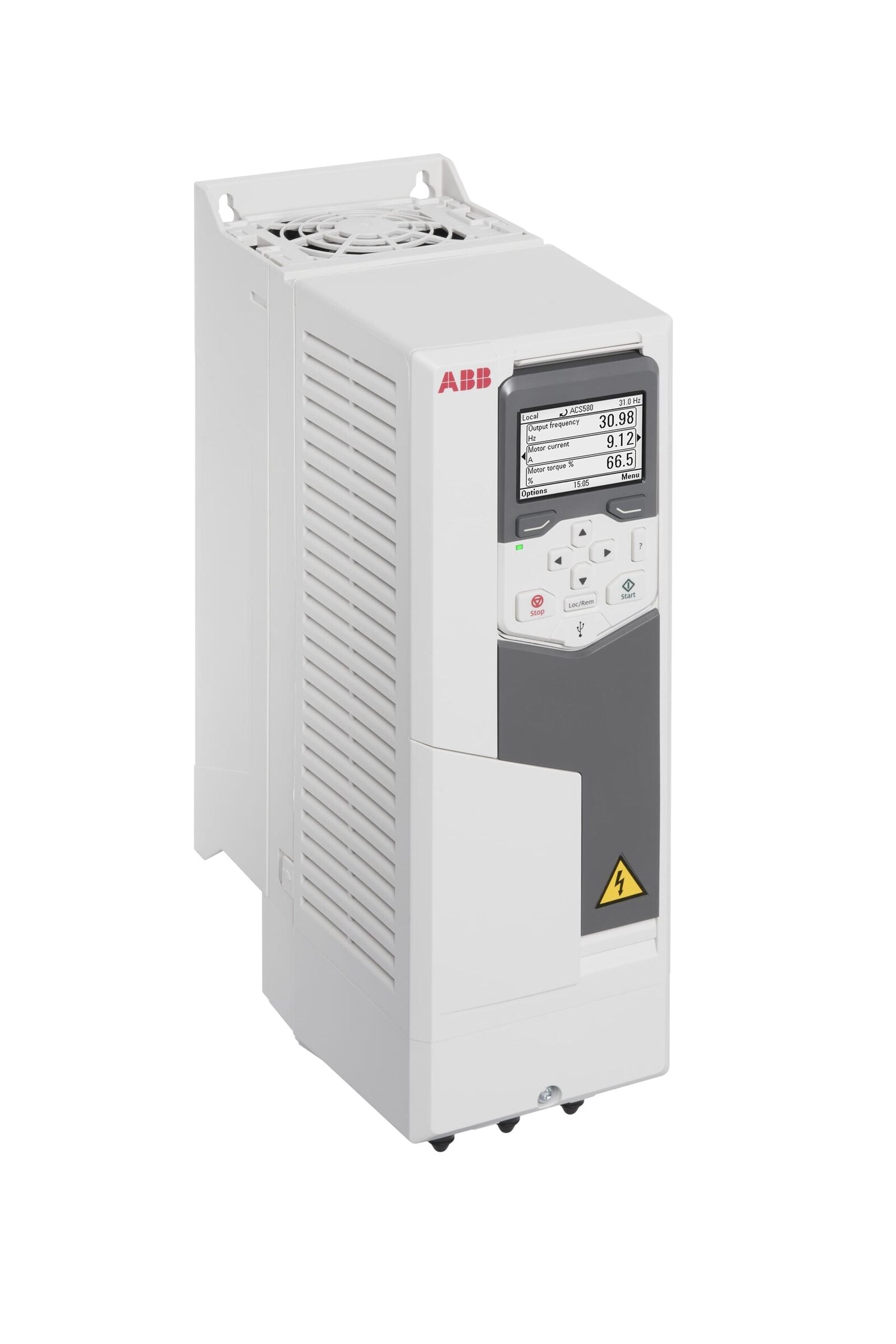

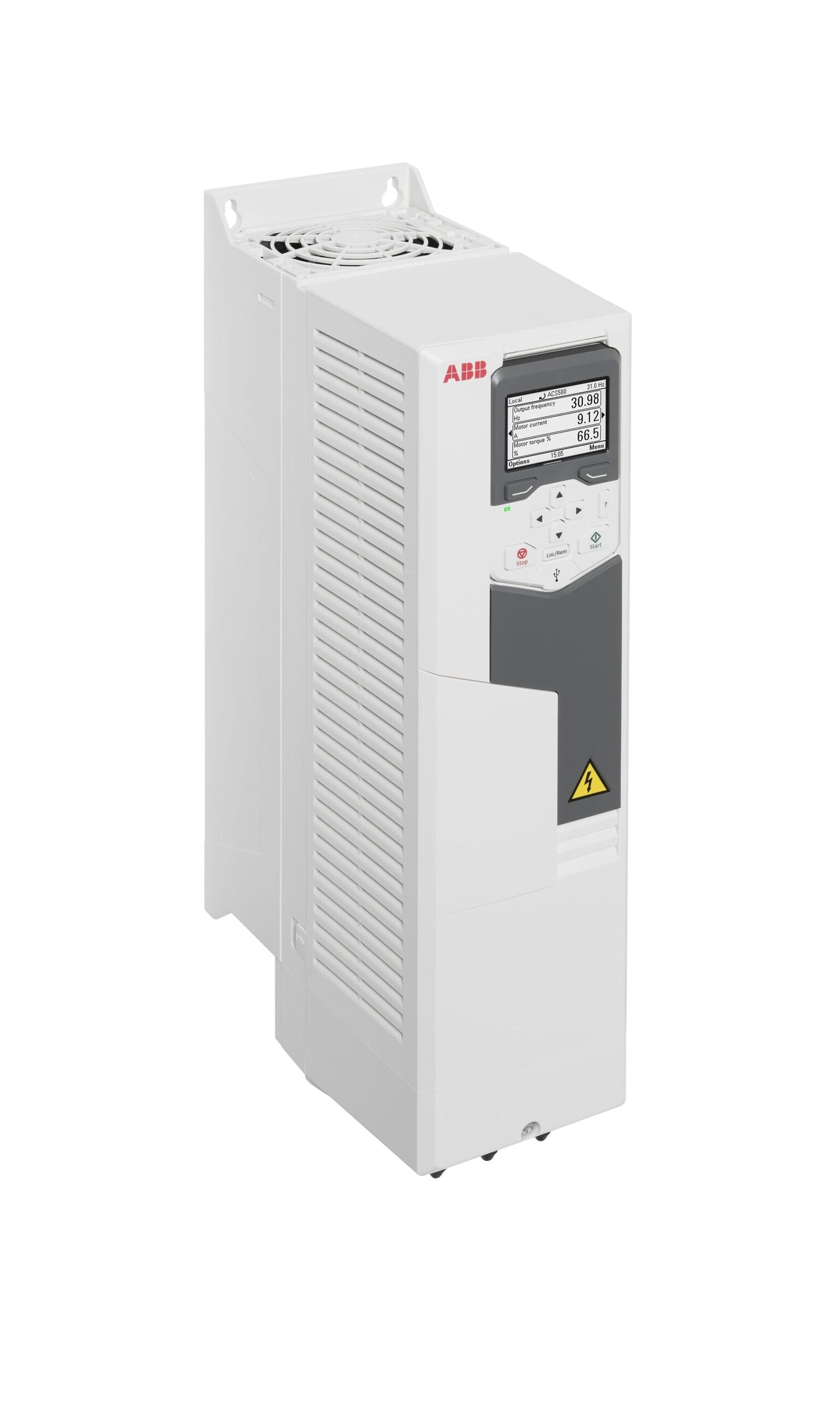

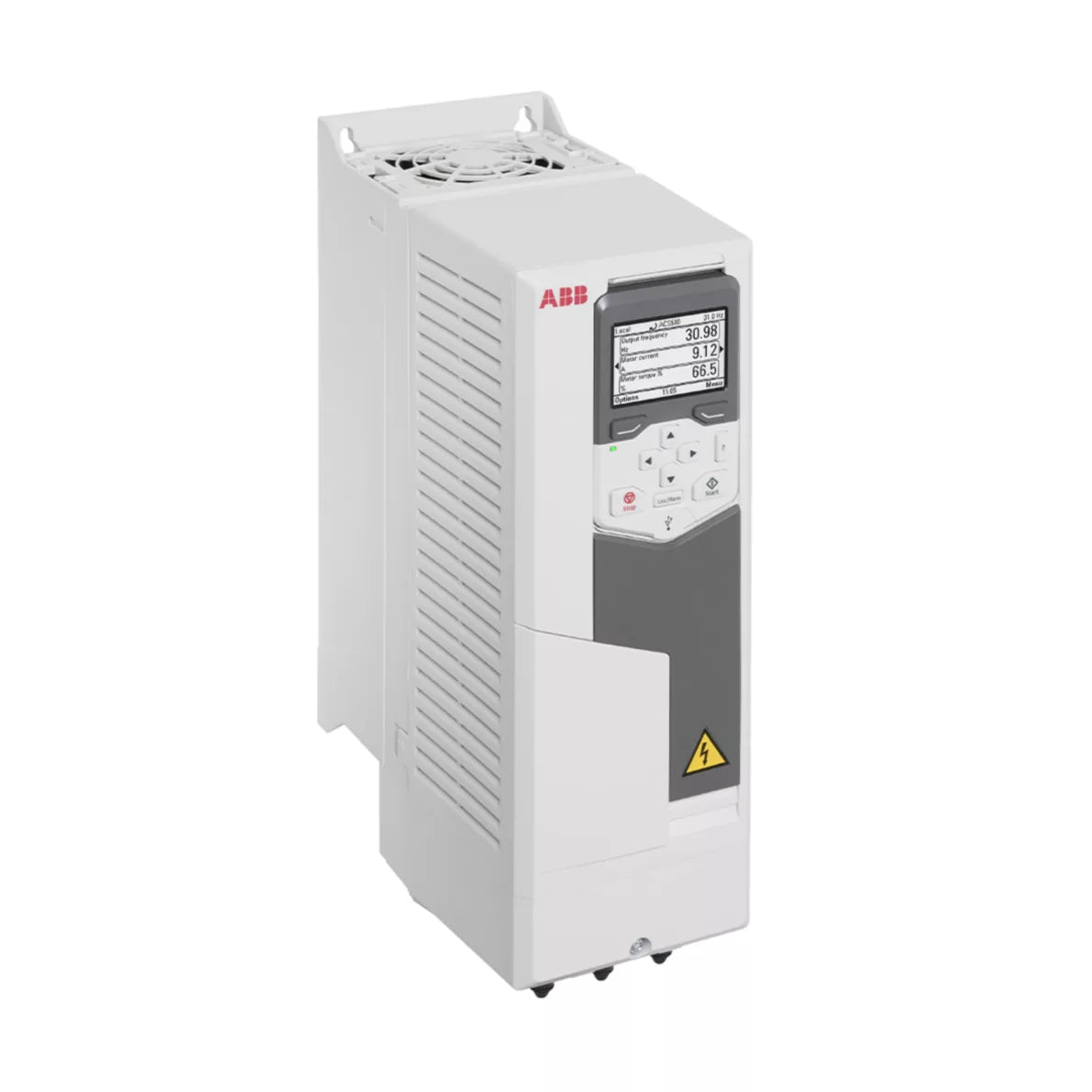

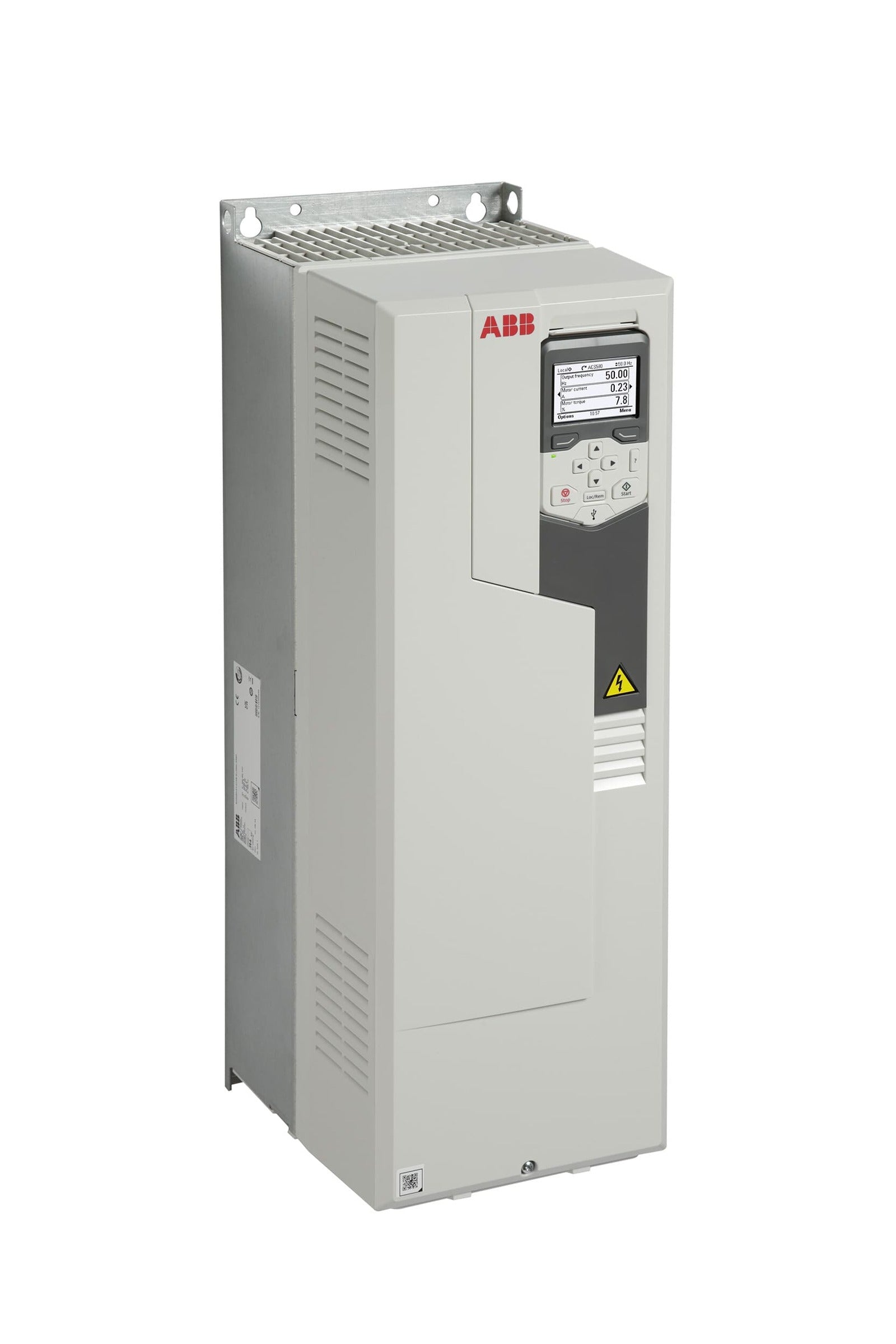

ABB ACS580-01 Series Inverter Frequency Converter 0.75KW-110KW 380V-480V 60/50Hz 3P Variable Frequency Drive (VFD) Machinery Drive
Couldn't load pickup availability
Available Bank offers
Instant 10% Discount On Selected Cards
HDFC Banks Credit/Debit Cards EMI and CreditCard Full Swipe.
Partner Offers
Get GST invoice and save up to 28% Off
Enter your business details on the registration page and you are done!
- Express Delivery
- 12 Months Warranty
- 7 Days Easy Replace
Product Overview
The ABB ACS580-01 Series is a wall-mounted, general-purpose frequency converter engineered to simplify variable speed control across a vast spectrum of industrial applications . True to its design philosophy of "everything you need, nothing you don't," the ACS580-01 integrates all essential features as standard, eliminating the need for additional hardware and simplifying the selection process . This plug-in-ready drive is designed to control everything from compressors, conveyors, and pumps to extruders, mixers, and fans, serving industries such as food and beverage, plastics, textiles, material handling, and agriculture .
As a key member of ABB's all-compatible drives portfolio, the ACS580-01 shares the same control panel, PC tools, parameter structure, and communication options as the ACS380, ACS180, and ACS880 platforms. This consistency means you only need to learn it once, simplifying engineering, operation, and maintenance across your entire facility .
Key Features:
-
All-in-one general purpose drive for wall mounting
-
Power range from 0.75kW up to 250kW (1HP to 350HP)
-
Supports multiple motor types: induction, permanent magnet, synchronous reluctance
-
IP21 enclosure as standard, with IP55 and Type 4X/IP66 options available
-
Built-in features for compressors, conveyors, pumps, fans, and mixers
-
Part of ABB's all-compatible drives portfolio – same panel, tools, and parameters across series
Technical Specifications
| Parameter | Details |
|---|---|
| Product Series | ABB ACS580-01 General Purpose Drive |
| Type | Wall-Mounted Frequency Converter / Variable Speed Drive (VSD/VFD) |
| Power Range | 0.75 kW to 250 kW (Standard 380-480V range) |
| Voltage Range | 3-phase: 380-480V AC, 50/60 Hz (also available in 200-480V ranges) |
| Output Frequency | 0...500 Hz |
| Enclosure Class | IP21 / UL Type 1 (Standard); Options for IP55 (UL Type 12) and IP66 (UL Type 4X) |
| Control Modes | Scalar (V/Hz) Control, Sensorless Vector Control |
| Motor Types | Induction (ASM), Permanent Magnet Synchronous (PMSM), Synchronous Reluctance (SynRM) |
| Safety | Safe Torque Off (STO) SIL 3 as standard |
| EMC Filter | Built-in Category C2 EMC filter (1st environment) as standard |
| Communication | Standard: Modbus RTU/ASCII (RS-485); Optional: PROFIBUS DP, PROFINET IO, EtherNet/IP, CANopen, DeviceNet, Modbus/TCP |
| Brake Chopper | Integrated as standard in many frame sizes |
| Efficiency Level | IE2 compliance |
| Ambient Temperature | -15°C to +40°C (standard, no derating); up to 50°C with derating |
Why Choose the ABB ACS580-01?
The ABB ACS580-01 Series represents the ideal balance of simplicity, reliability, and performance for general-purpose industrial applications. By integrating all essential features as standard, it eliminates the guesswork from drive selection and installation. Its robust construction ensures dependable operation in harsh environments, while its intuitive assistant panel and unified platform make it remarkably easy to use and integrate across an entire facility
Backed by ABB's global leadership in drives technology and part of the all-compatible portfolio, the ACS580-01 is a future-proof investment that simplifies engineering, reduces training costs, and delivers the energy savings and process control required for modern industrial operations.
Choose the ABB ACS580-01 for a powerful, easy-to-use drive solution that truly has everything you need, built right in.
